Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs

The internal structural parts and shell are made of precision molds

Instant power supply, automatic positioning

High temperatur

Demand consultation

Product specification

support Sensor：CMOS Sensor

Product material：PC+GF

Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）

Spectrum of filter glass：IR400-650 \AR400-1100nm

Switch test：blue glass，Don't switch

collocation lens：M24.5 screw-mount lens

Sensor frame：14.5mm*14.5mm*0.8mm

Visible window：8mm*8mm

Screw hole distance：20mm

Working temperature：-20℃~80℃

Working humidity：60%±15%

Overall dimensions:34mm*24.85mm*6.35mm

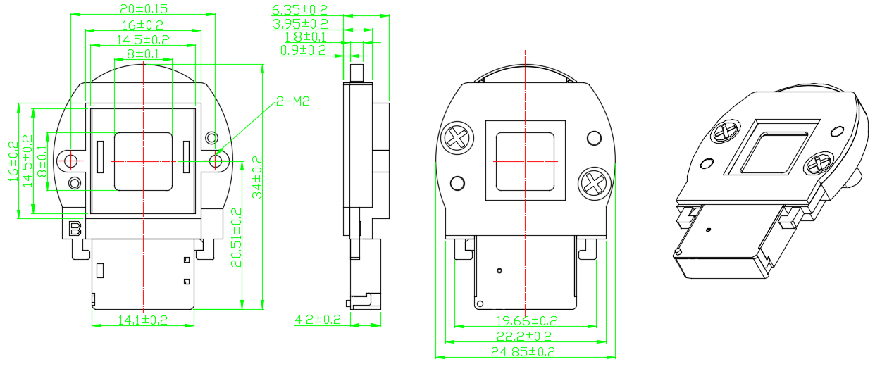

Overall dimension
