support Sensor：CMOS Sensor

Drive way：Impulse type

Product material：PC+GF

driving voltage：5V

Matching resistance：15Ω-40Ω

Drive time：250ms-450ms

Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）

Spectrum of filter glass：IR400-650 \AR400-1100nm

Life test：5WAt a time
Visible window：7.9mm*7.9mm

Screw hole distance：18.24mm

Working temperature：-20℃~80℃

Working humidity：60%±15%

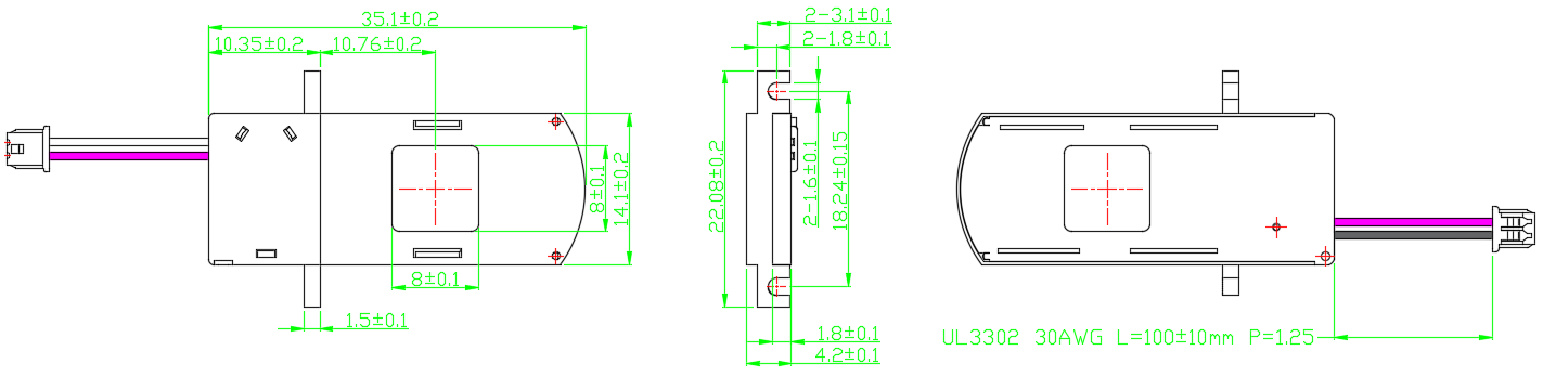

Overall dimensions:35.1mm*22.08mm*4.2mm
