Product center

Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs

The internal structural parts and shell are made of precision molds

Instant power supply, automatic positioning

High temperatur

Demand consultation

Product specification

support Sensor：CMOS Sensor

Drive way：Impulse type

Product material：PC+GF

driving voltage：5V

Matching resistance：15Ω-40Ω

Drive time：250ms-450ms

Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）

Spectrum of filter glass：IR400-650 \AR400-1100nm

Life test：5WAt a time
Sensor frame：17mm*17mm*4.05mm

Visible window：8mm*8mm

Screw hole distance：17*17mm

wire：30AWG,The terminal and length are optional

Working temperature：-20℃~80℃

Working humidity：60%±15%

Overall dimensions:35.1mm*24.85mm*6.8mm

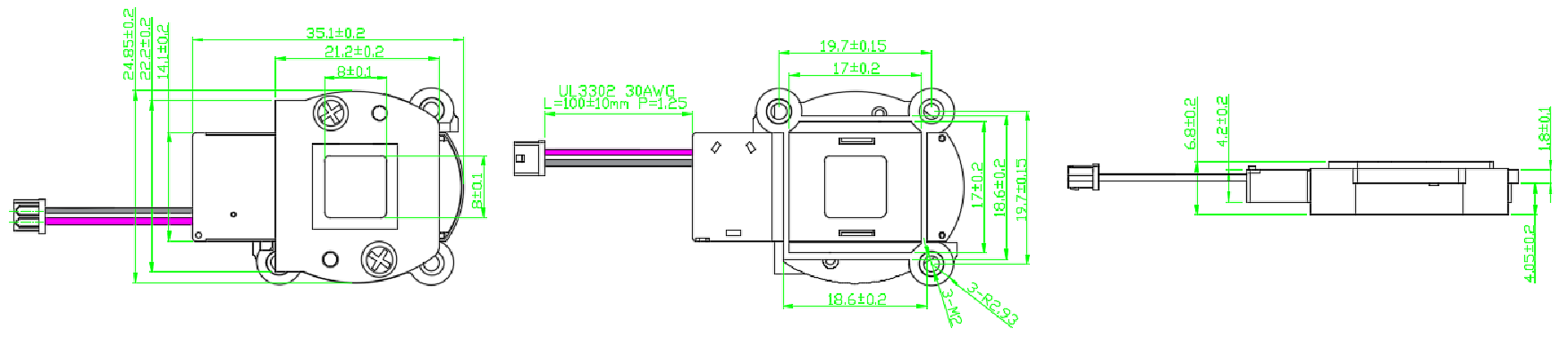

Overall dimension
