support Sensor：CMOS Sensor

Drive way：Impulse type

Product material：PC+GF

driving voltage：5V

Matching resistance：15Ω-40Ω

Drive time：250ms-450ms

Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）

Spectrum of filter glass：IR400-650 \AR400-1100nm

Life test：5WAt a time
Sensor frame：17mm*17mm*3.9mm

Visible window：8mm*8mm

Screw hole distance：20mm

wire：30AWG,The terminal and length are optional

Working temperature：-20℃~80℃

Working humidity：60%±15%

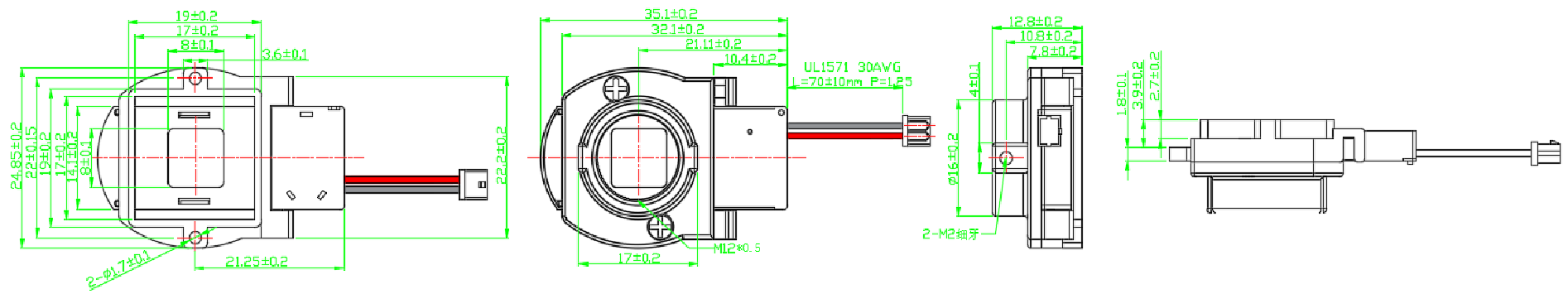

Overall dimensions:35.1mm*24.85mm*12.8mm
