Drive way：Impulse type

Product material：PC+GF

driving voltage：5V

Matching resistance：10Ω-20Ω

Drive time：250ms-450ms

Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）

Spectrum of filter glass：IR400-650 \AR400-1100nm

Life test：5WAt a time

collocation lens：M12screw-mount lens

Sensor frame：13.5mm*13.5mm*2.4mm

Visible window：5mm*7mm

Screw hole distance：20mm

wire：30AWG,The terminal and length are optional

Working temperature：-20℃~80℃

Working humidity：60%±15%

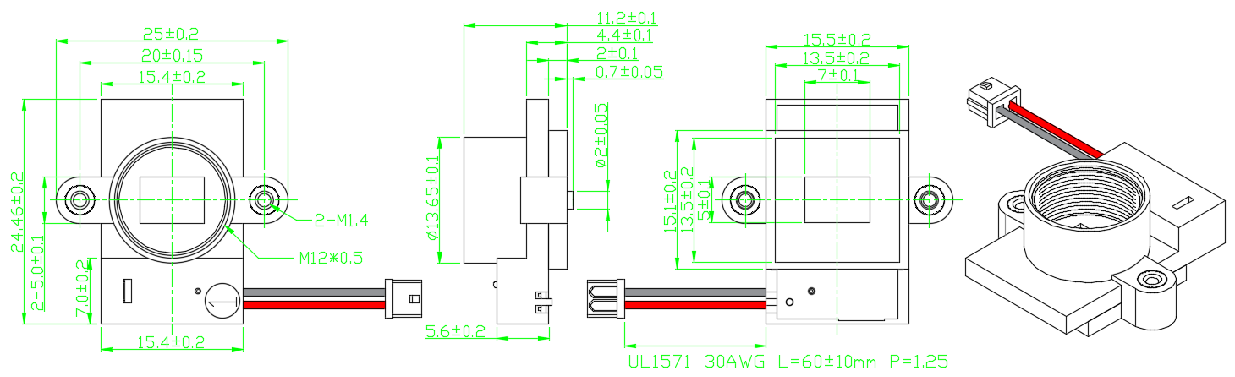

Overall dimensions:24.46mm*25mm*11.2mm
